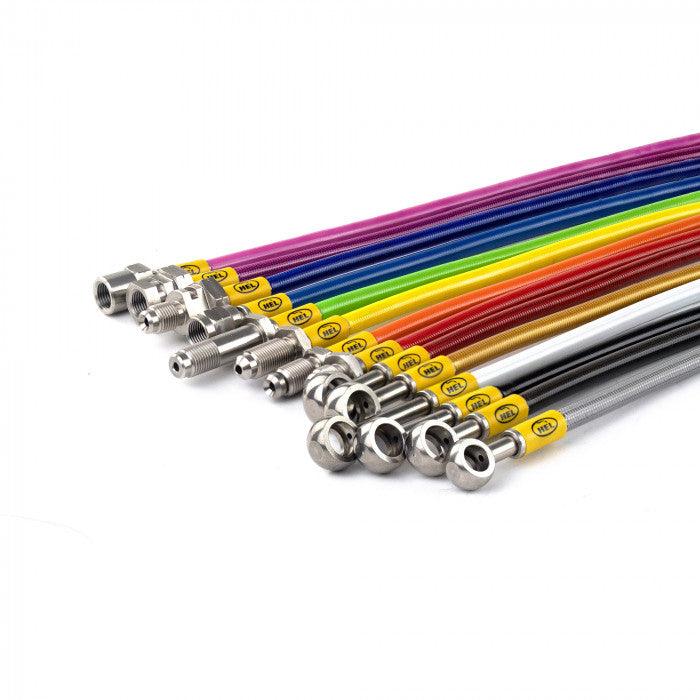

HEL Performance Clutch Line images are for illustration purposes only. You'll receive an item suitable for your application.
HEL Performance Flexible Braided Clutch Line Mazda Miata, MX-5 All Models (1990-2005)
HEL Performance Flexible Braided Clutch Line Mazda Miata, MX-5 All Models (1990-2005)

HEL Performance Flexible Braided Clutch Line Mazda Miata, MX-5 All Models (1990-2005)

CCK034-CLR

Regular price$45.82
/
Shipping calculated at checkout.
  • Made to Order in House

HEL Brake lines are made to order, normal lead time is 2-3 business days.

Contact our sales team at sales@attackingtheclockracing.com or 321-804-1101 for additional info.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

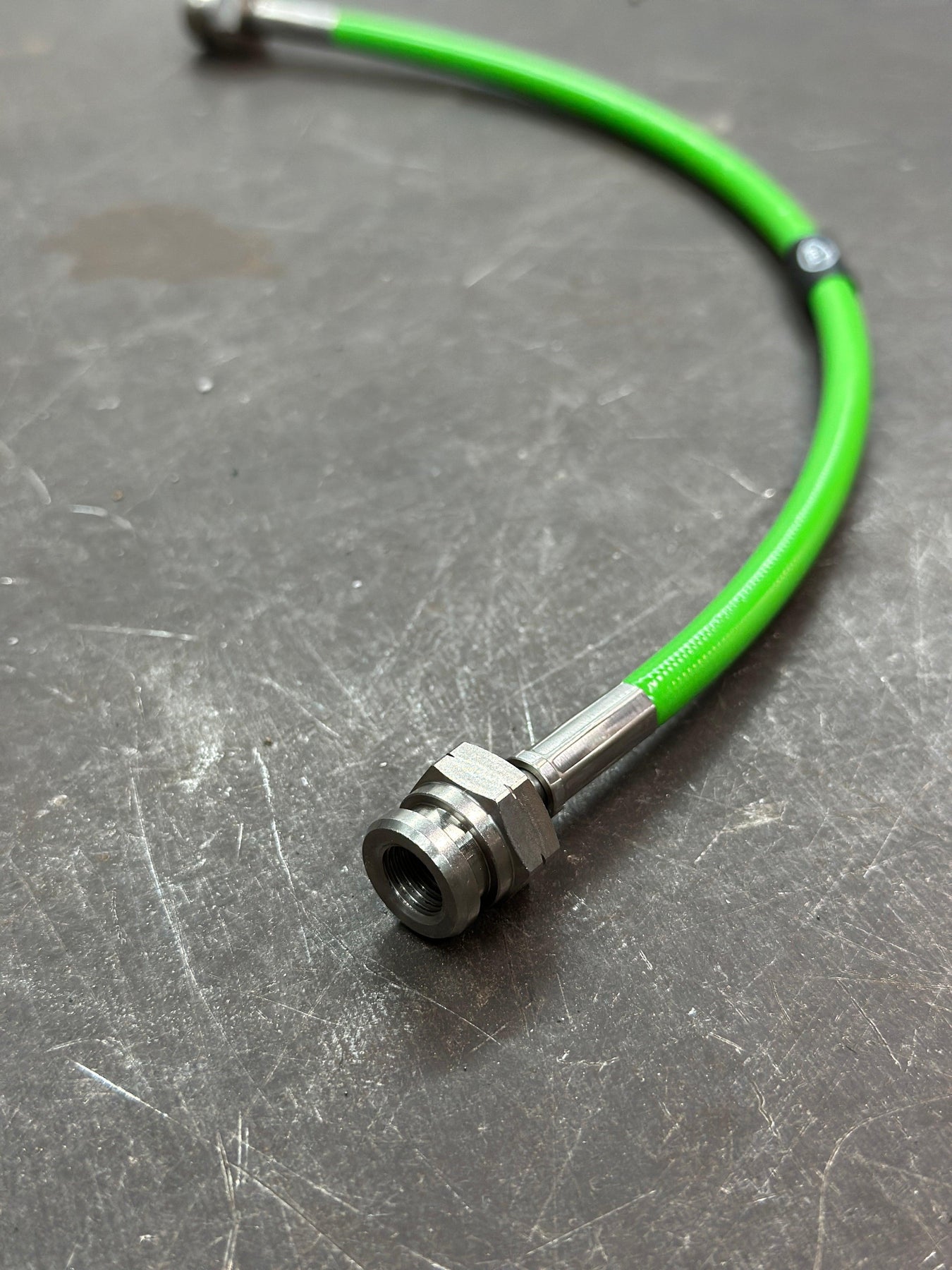

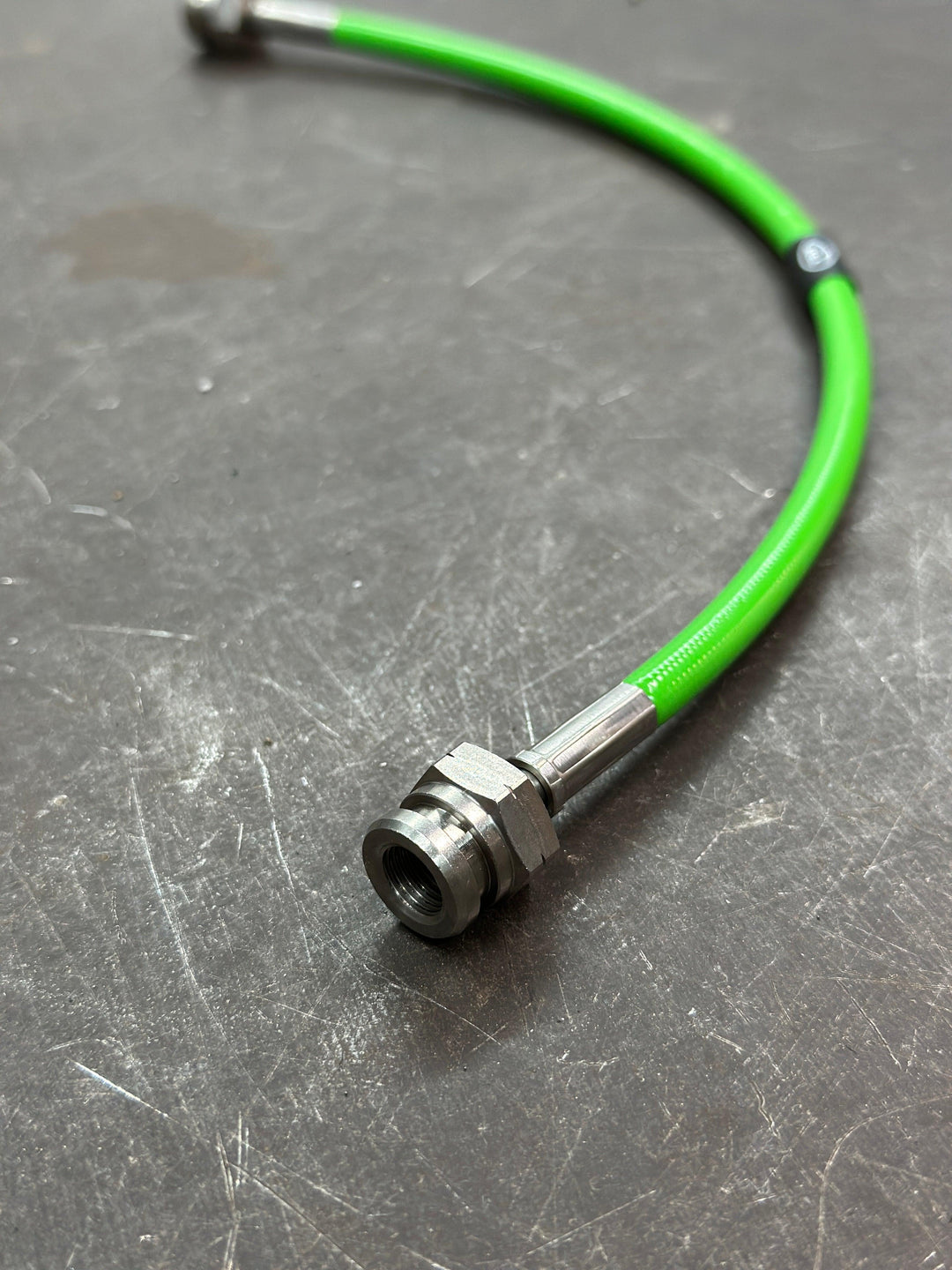

Experience improved responsiveness with the HEL Performance Flexible Braided Clutch Line for Mazda Miata and MX-5 All Models (1990-2005). It's engineered from aircraft-grade stainless steel and utilizes a PTFE inner lining for excellent fluid compatibility and durability.

Don't risk using an inferior clutch line when you can trust us to improve clutch reliability and performance.

We use stainless steel in our lines and fittings. Most competitors use zinc-plated fittings which are at risk from corrosion and abrasion!

Choose your color and click 'add to basket' to order your clutch line.

What's Included:
Stainless steel braided clutch line(s)
Natural plain stainless steel banjo bolts (if the fittings require them)
Copper crush washers (if the fittings require them)
Installation leaflet

Specifications:
Line inner material: PTFE
Line outer material: Stainless steel (303/304) and protective PVC cover
Fittings material: Stainless steel (303/304)
Temperature range: -70¡C to 260¡C (-94¡F to 500¡F)
Inside diameter: 3.5mm (0.138")
Outside diameter: 7.5mm (0.295")
Maximum working pressure: 290 Bar (4206 PSI)
Burst pressure: 870 Bar (12618 PSI)
Minimum bend radius: 38mm (1.496")
