EPAS500CH Competition Wiring Harness
EPAS500CH
- In stock, ready to ship
- Backordered, shipping soon
Contact our sales team at sales@attackingtheclockracing.com or text/call 321-804-1101 for assistance.

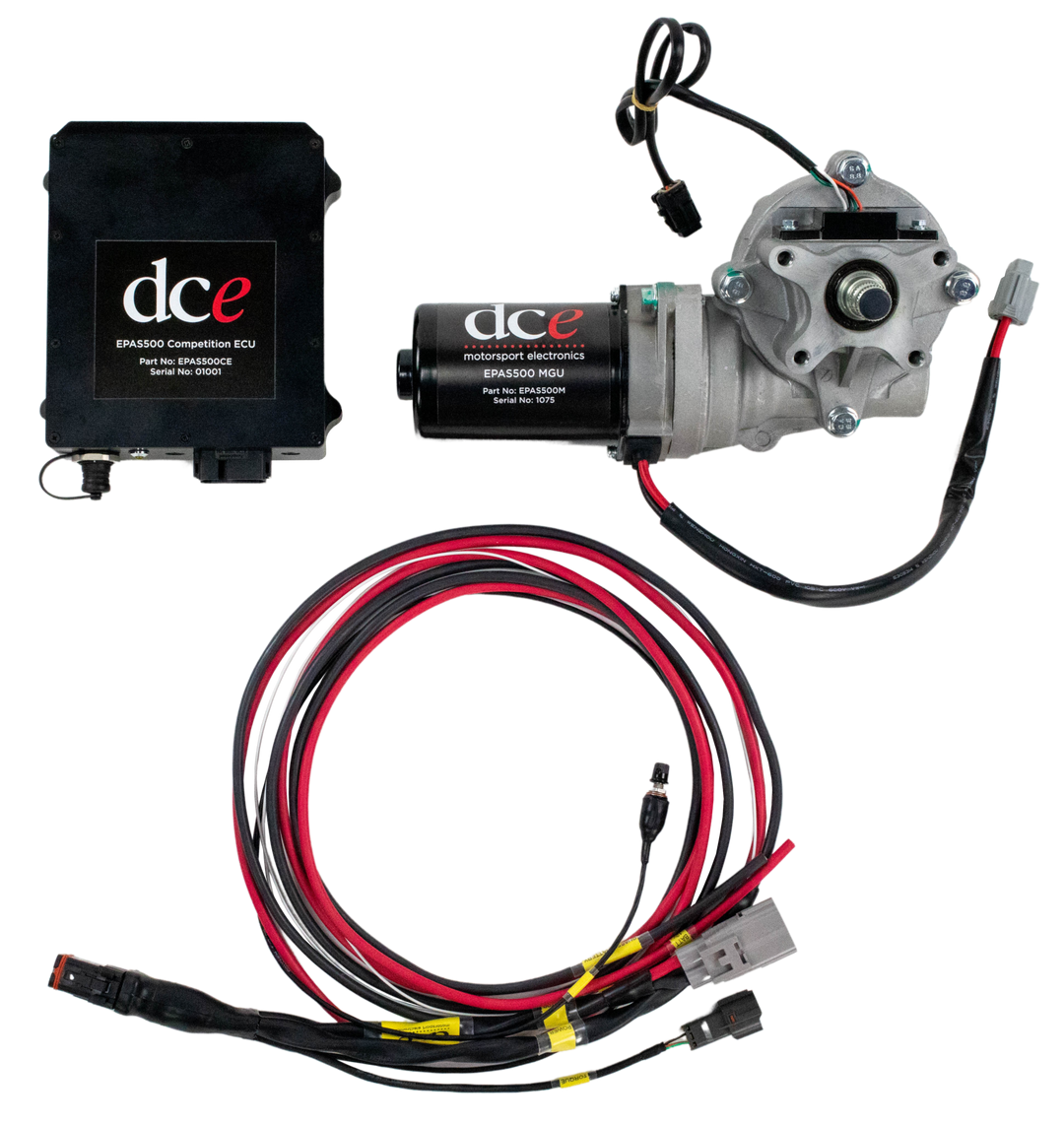

Wiring Harness for the EPAS500 Competition System
• 12V electric power assisted steering system.• MGU can be fitted anywhere in line between the steering wheel and rack input pinion.• System can provide up to 90Nm / 66 ft.lb of assistance, not including driver input.• Complete standalone system - only requires a 12v power supply to operate.• 5 x driver selectable steering maps via rotary switch.• Operating parameters and steering maps can be adjusted via free software.• Built in communication port, status LED and Anti-Vibration mounting feet.• Simple wiring connection via 3 flying leads.• IP66 Rated.
Designed with motorsport in mind, the EPAS500 Competition system is ideal for users not requiring the CAN Bus connectivity or power of our Ultra systems. Being IP66 rated and with built in anti-vibration mounts, it is perfectly suited to harsh environments, including open cockpit race cars and powerboats. Simple to install (only 3 wires to connect), the system also offers tuneable steering maps via our free software.
The full system comprises the following parts:
|
EPAS500M
|
EPAS500 MGU
|
|
EPAS500CE
|
EPAS500 Competition ECU
|
|
EPAS500CH
|
EPAS500 Competition Wiring Harness
|
Optional Extras:
|
EPAS500SC
|
EPAS500 Output Straight Coupler
|
|
EPAS500UJ
|
EPAS500 Output Universal Joint
|
|
EPAS200SC
|
Microsteer Straight Coupler (Input)
|
|
EPAS200UJ
|
Microsteer Universal Joint (Input)
|
|
EPAS500CC
|
EPAS500 Competition Comms Cable
|
Technical Specification
|
Operating Voltage
|
10-16V DC
|
|
Maximum current draw
|
60 Amps @ 13.8V DC
|
|
Motor Rated Power
|
400 Watt
|
|
No Load Rotation Speed
|
650 degrees per second
|
|
Maximum Torque Output
|
90Nm / 66ft.lb
|
|
IP Rating
|
IP66
|
|
Operating Temperature
|
-20 to 85°C / -4 to 185°F
|
|
System Weight (MGU & ECU)
|
7.35kg / 16.22lbs
|
|
MGU Input Spline Pattern
|
17mm x 36 / 11/16" x 36
|
|
MGU Output Spline Pattern
|
21mm x 20
|
|
Speed Signal Input Available
|
No, Adjustment via rotary switch only
|
