DC Electronics EPAS Ultra System Kit
EPAS-ULT-KIT
- Worldwide Shipping Available
This product is made to order and ships 1-2 weeks after the order is processed.
Contact us at 321-804-1101 for custom configurations or Rush orders.
DC Electronics Motorsport EPAS Ultra System Kit is our top level, most powerful system. The System has 5 adjustable steering maps and CAN bus connectivity for exporting operating parameters to the vehicle's data logger. With a torque of 110Nm/81ft.lb, it is suitable for professional motorsport and other applications needing increased assistance.
- 12V electric power-assisted steering system.
- MGU can be fitted anywhere in line between the steering wheel and rack input pinion.
- System can provide up to 110Nm / 81 ft.lb of assistance, not including driver input.
- Complete standalone system - only requires a 12v power supply to operate.
- 5 x driver-selectable steering maps via rotary switch or CAN message.
- Operating parameters and steering maps can be adjusted via free software.
- CAN bus connectivity.

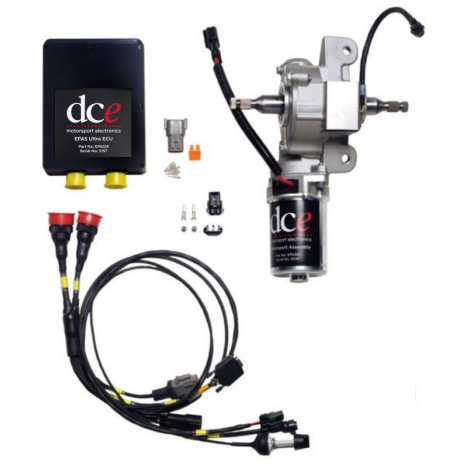

Includes:
- 1x EPAS01 MGU
- 1x EPAS18 ECU
- 1x EPAS19 Wiring Harness
Technical Specification
|
Operating Voltage |
Nominal 13.8V DC |
|
Maximum current draw |
80 Amps |
|
System Weight (MGU & ECU) |
6.35kg / 13.99lbs |
|
Maximum Torque Output |
110Nm / 81ft.lb |
|
No Load Rotation Speed |
800 degrees per second |
|
IP Rating |
IP64 |
|
Operating Temperature |
-20 to 85°C / -4 to 185°F |
|
Motor Rated Power |
800 Watt |
|
MGU Input / Output Spline Pattern |
9/16” x 36 |
|
Speed Signal Input Available |
By selecting steering map via CAN |
Optional Accessories
|
EPAS07b |
Ultra Assembly Straight Coupler |
|
EPAS08b |
Ultra Assembly Universal Joint |
|
PNU0097 |
Multi Turn Steering Angle Sensor Kit |
