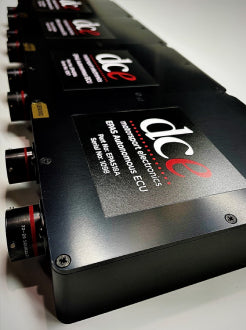

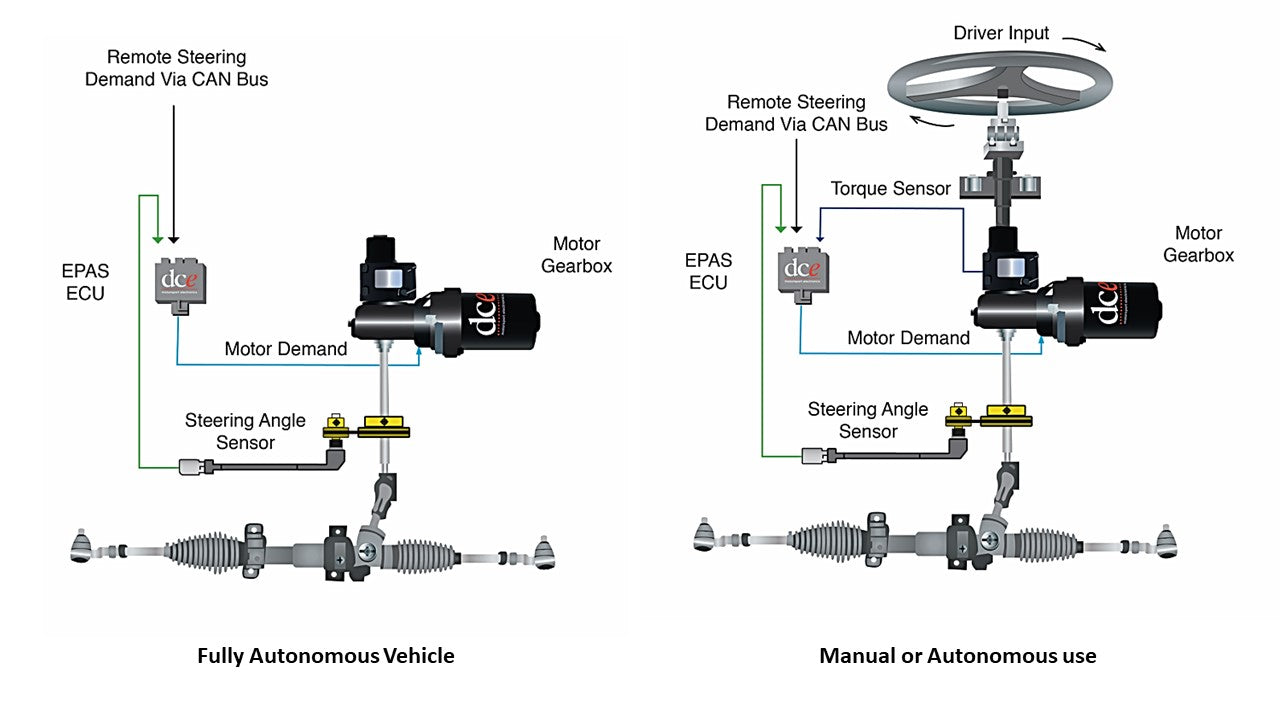

The DC Electronics EPAS18A Autonomous Ultra ECU is a specialized electronic control unit designed to manage electric power-assisted steering (EPAS) systems It enables both manual driving and automated/autonomous steering control via CAN bus integration.
The Ultra EPAS System is built around a high-performance low-ratio gearbox, delivering usability beyond what is achievable with conventional EPAS systems while maintaining exceptional steering feel and feedback. Five fully configurable steering maps allow assistance characteristics to be fine-tuned via our free to download software, ensuring optimal performance across a wide range of vehicles and driving conditions. Integrated CAN bus connectivity provides complete access to system data, enabling seamless logging and analysis through the vehicle’s data acquisition system.
The system comprises the following parts:
|
EPAS01
|
Ultra Assembly
|
|
EPAS18
|
Ultra ECU
|
|
EPAS19
|
Ultra Wiring Harness
|
Optional Extras:
|
EPAS07b
|
Ultra Assembly Straight Coupler
|
|
EPAS08b
|
Ultra Assembly Universal Joint
|
|
PNU0097
|
Multi Turn Steering Angle Sensor Kit
|
Technical Specification
|
Operating Voltage
|
Nominal 13.8V DC
|
|
Maximum current draw
|
80 Amps
|
|
Average current draw
|
Circuit dependent
|
|
System Weight (EPAS01 & EPAS18)
|
6.35kg / 13.99lbs
|
|
Maximum Torque Output
|
70Nm / 52ft.lb
|
|
No Load Rotation Speed
|
800 degrees per second
|
|
Motor Rated Power
|
800 Watt
|
|
Input/Output Spline Pattern
|
9/16” x 36
|
