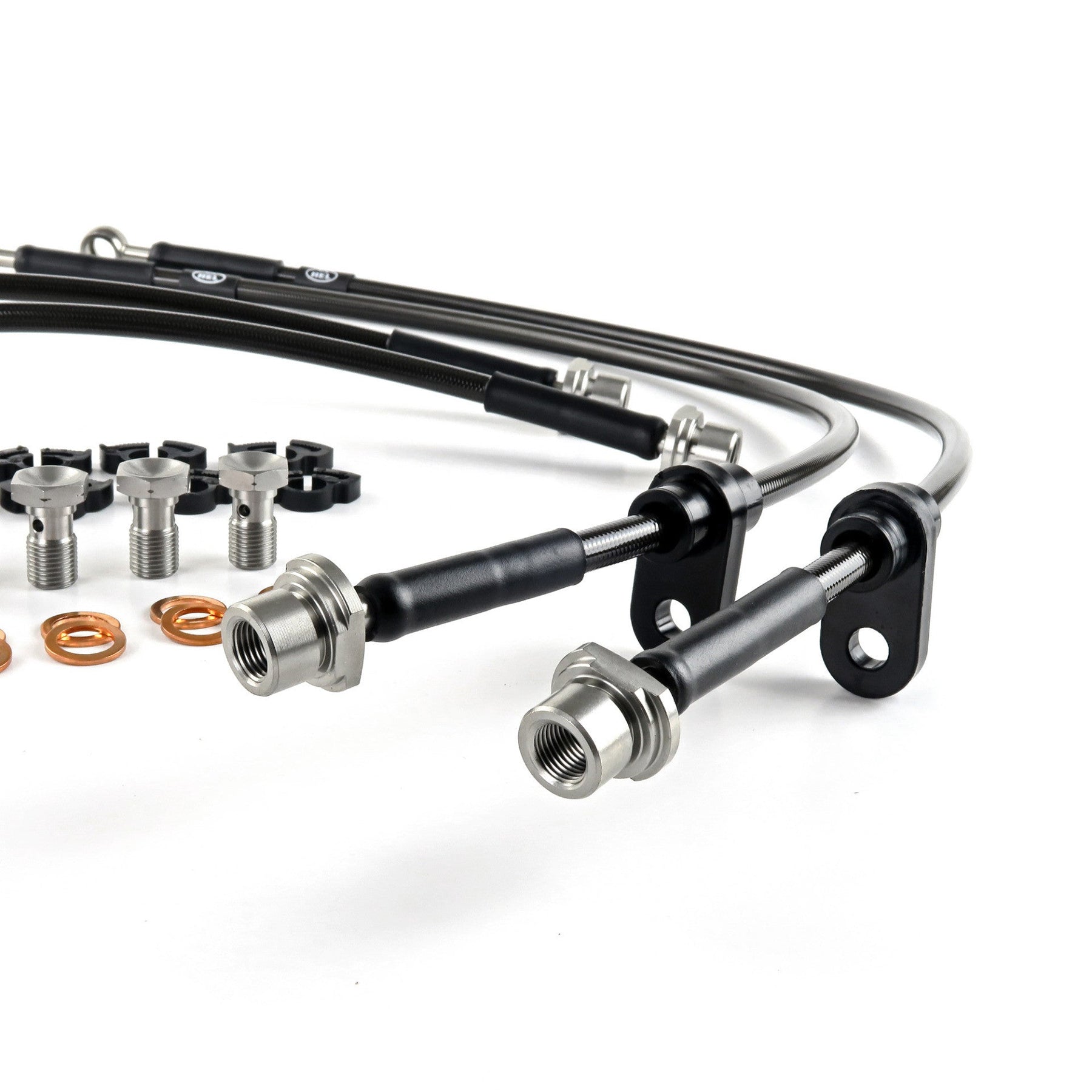

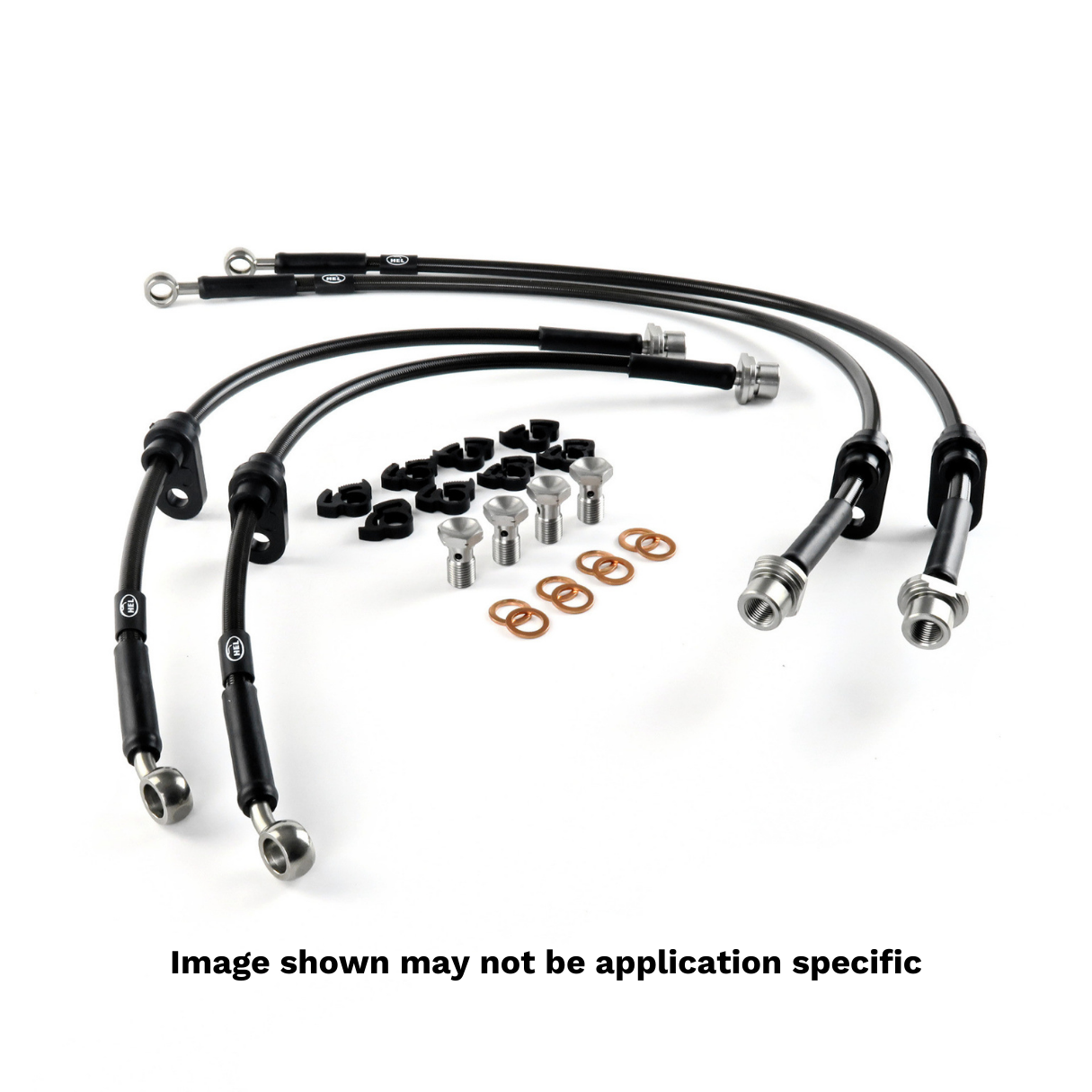

This kit replaces the hardline from the late type servo assisted master cylinder to the PDWA valve (FAM7821). The kit allows the Servo to be moved out of the way during maintenance without the need break into the system.
Standard OEM Replacements
Like for like replacements for the standard flexible brake hoses on your vehicle.

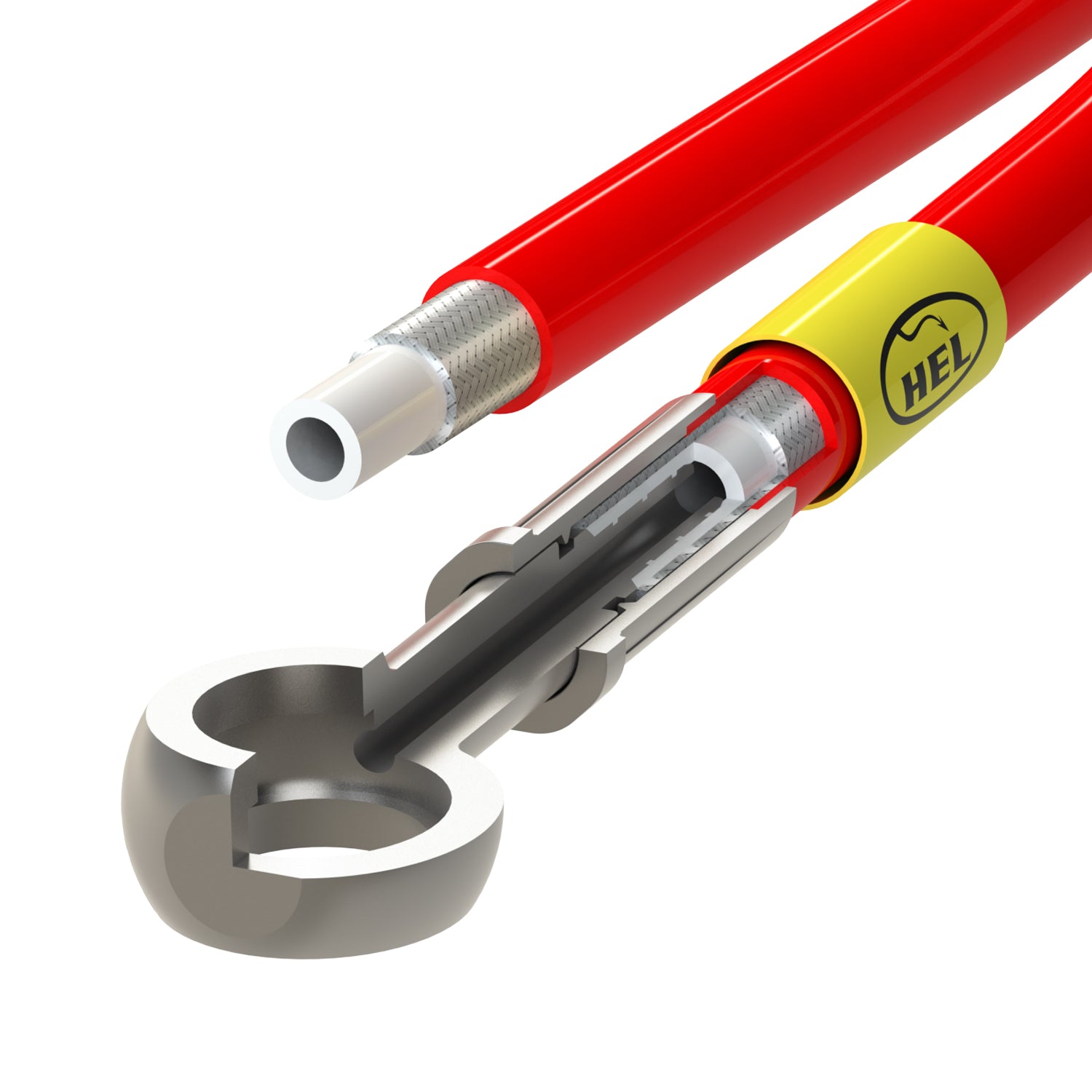

Want to see behind the scenes?
Take a look at the unique manufacturing and assembly process behind our flagship braided brake hoses.
Hose Specifications
| AN Hose Size | AN3, AN03, -3 |
| Internal Diameter | 3mm, 1/8" |
| External Diameter | 8mm, 5/16" |
| Weight (Per Metre) | 71g, 0.16lbs |
| Inner Material (Core) | PTFE |
| External Material (Overbraid) | Stainless Steel - 303/304 |
| External Material (Outer) | PVC (Transparent or Colored) |
| Fitting Material (Hose End) | Stainless Steel - 303/304 |
| Minimum Temperature | -70°C -94°F |
| Maximum Temperature | 250°C, 482°F |
| Operating Pressure | 4206 PSI, 290 BAR |
| Burst Pressure | 12618 PSI, 870 BAR |
| Minimum Bend Radius (90°) | 19mm, 0.7" |
| Fluid Compatibility | Petrol, E5, E10, E85, Race Fuel, Methanol, Diesel, Nitrous Oxide, Engine & Hydraulic Oil, Air, CO2, Coolant, Water, Brake & Clutch Fluid (DOT) |
| Brand | HEL Performance |
