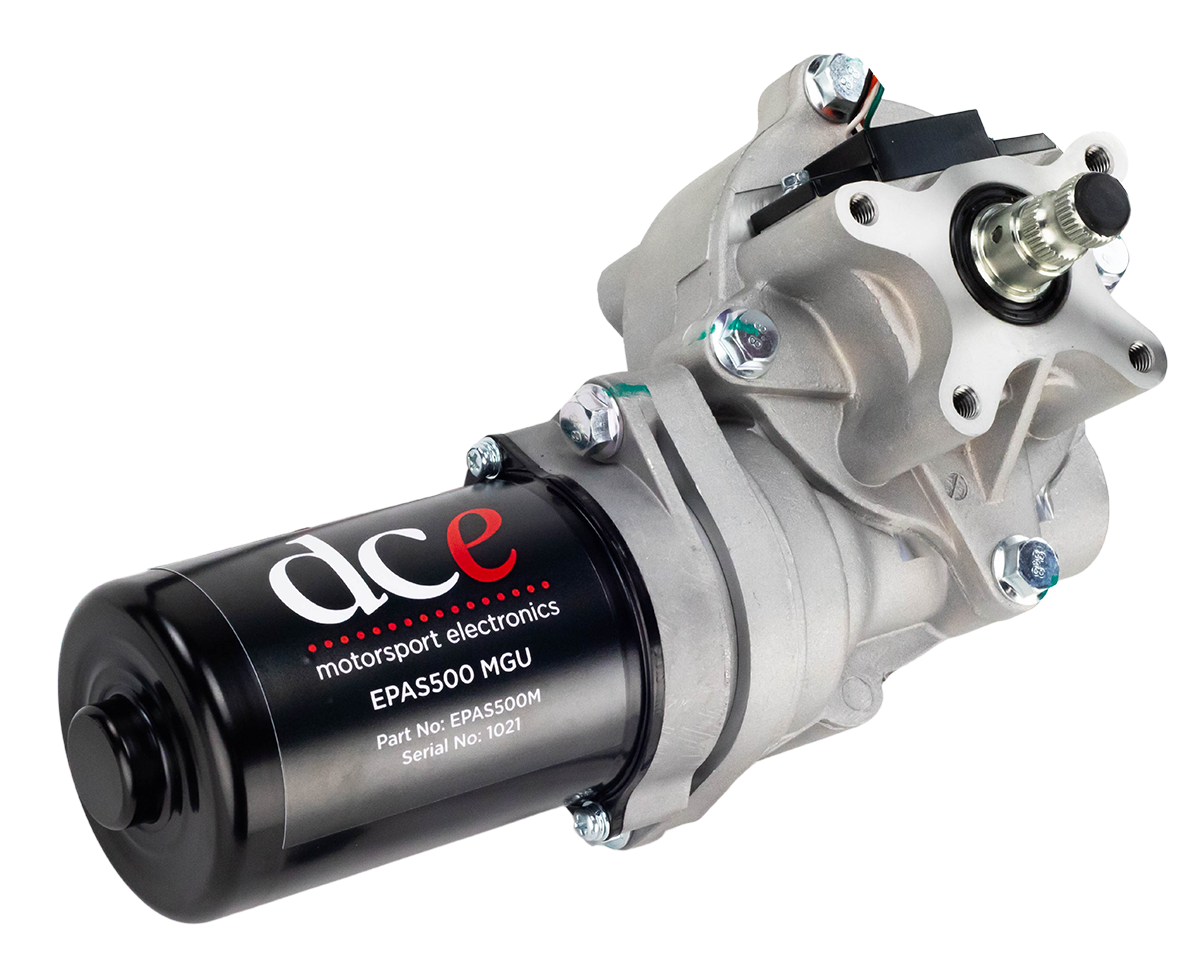

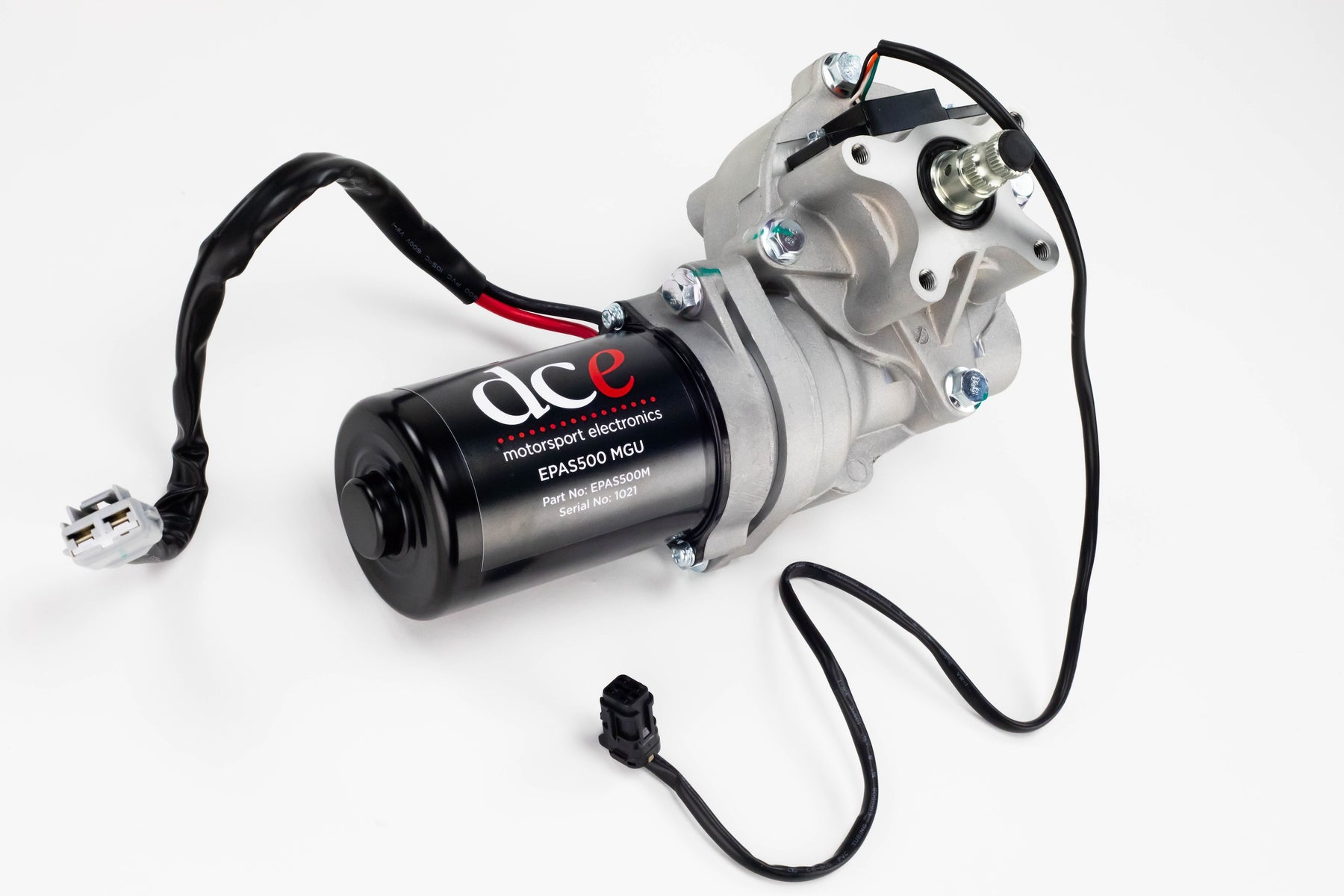

DC Electronics EPAS500 Power Steering MGU
- 12V electric power-assisted steering system.
- MGU can be fitted anywhere in line between the steering wheel and rack input pinion.
- System can provide up to 80Nm / 59 ft.lb of assistance, not including driver input.
- Complete standalone system - only requires a 12v power supply to operate.
- IP67 Rated.
Technical Specification
|
Operating Voltage
|
Nominal 13.8V DC
|
|
Maximum current draw
|
40 Amps
|
|
System Weight (MGU & ECU)
|
6.95kg / 15.32lb
|
|
Maximum Torque Output
|
80Nm / 59 ft.lb
|
|
No Load Rotation Speed
|
650 degrees per second
|
|
IP Rating
|
IP67
|
|
Operating Temperature
|
-40 to 85°C / -40 to 185°F
|
|
Motor Rated Power
|
400 Watt
|
|
MGU Input Spline Pattern
|
17mm x 36 / 11/16” x 36
|
|
MGU Output Spline Pattern
|
21.16mm x 20mm
|
|
Speed Signal Input Available
|
Yes
|
