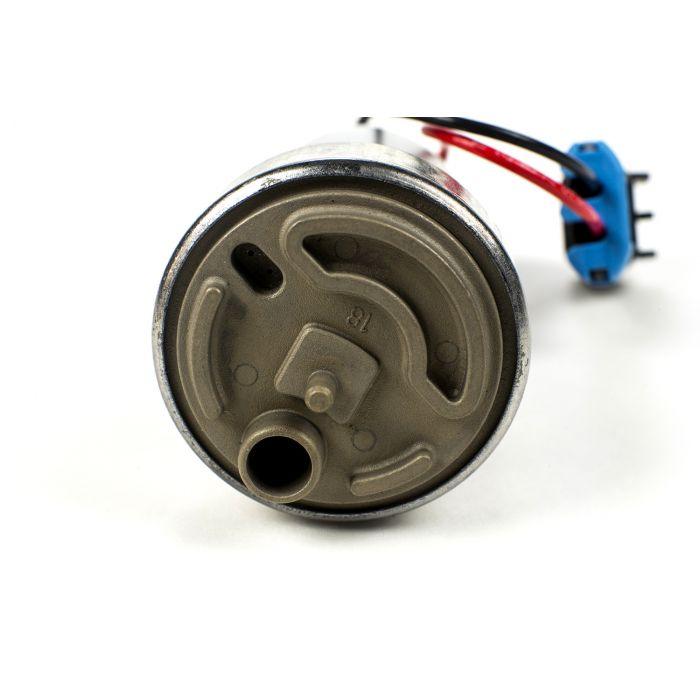

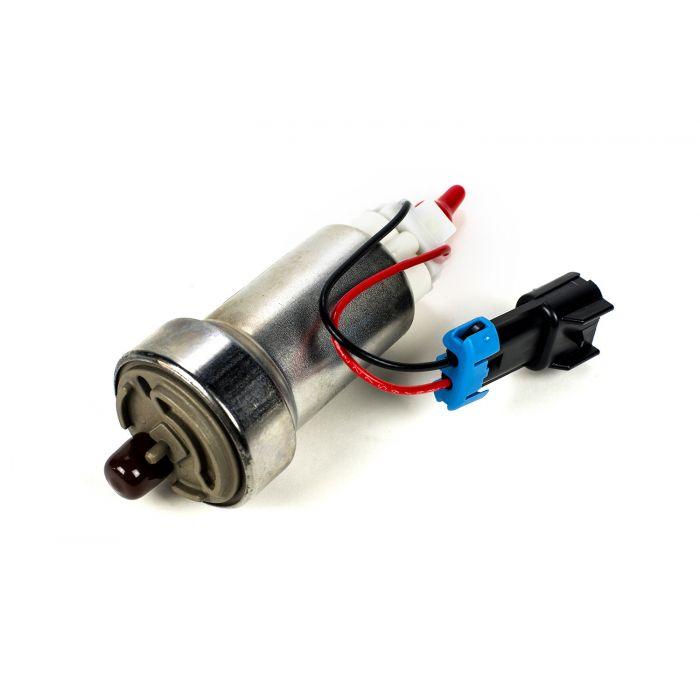

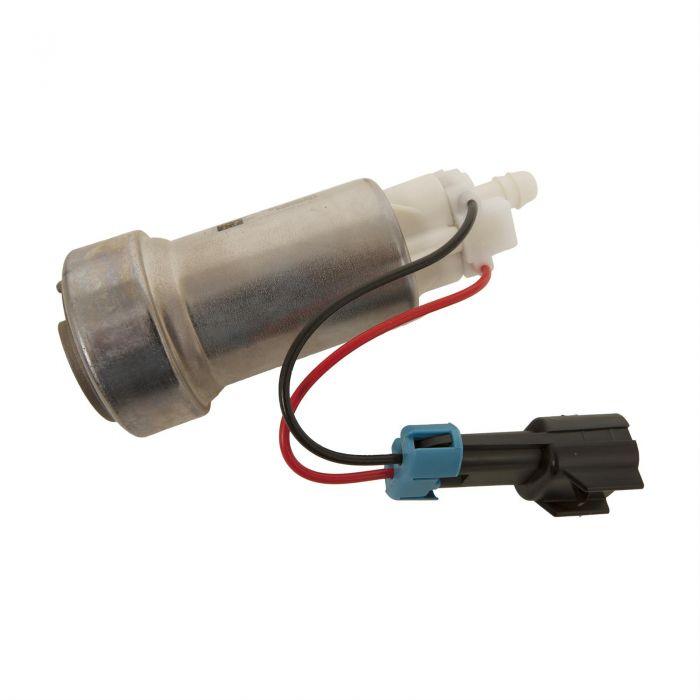

Walbro 520 High Pressure "Hellcat" Fuel Pump

Regular price$199.00
Shipping calculated at checkout.

  • Worldwide Shipping Available
  • In stock, ready to ship

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

The Walbro 520 High Pressure "Hellcat" Fuel pump is perfect for high-performance applications. Choose one-to-three pumps depending on your Horsepower requirements:

  • 1 pump supports up to 650 HP (E85)
  • 2 pumps support up to 1200 HP (E85)*
  • 3 pumps support up to 1500 HP (E85)*


Enjoy the highest output on today’s market with the new DCSS 39/50 fuel pump. Able to support an aggressive 700+ horsepower, with a supercharger, this innovative dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both gas and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalleled performance

F90000285 Flex Fuel HP Pump The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high-performance engines exceeding 500hp.

  • Highest flow in-tank brushed fuel pump offering from TI Automotive
  • Featuring award-winning DCSS technology
  • E85 compatible
  • Internal check valve — prevent fuel system pressure bleed down — prevent extended cranks
  • High-pressure relief setting — support supercharger and turbo applications
  • Capable of supporting 900+HP at 60PSI naturally aspirated applications
  • Flush mountable to an existing hanger with installation kit 400-1168, sold separately.


Product Specifications:

  • Fuel: GAS & E85
  • Horsepower: 900+ at 60PSI, naturally aspirated applications
  • Over All Pump Length: 131mm
  • Main Housing Diameter: 39mm
  • Lower Housing Diameter: 50mm
  • Fuel Inlet Diameter: 11mm OD
  • Fuel Outlet Diameter: 11mm OD
  • Flow Rate: 470lph @ 40psi (120+ gph)
  • Test Voltage: 13.5 Volts

*The F90000285 requires modifications to system wiring, fuel lines, and the fuel module, and should be professionally installed.

*Wiring pigtail and installation kit sold separately.
