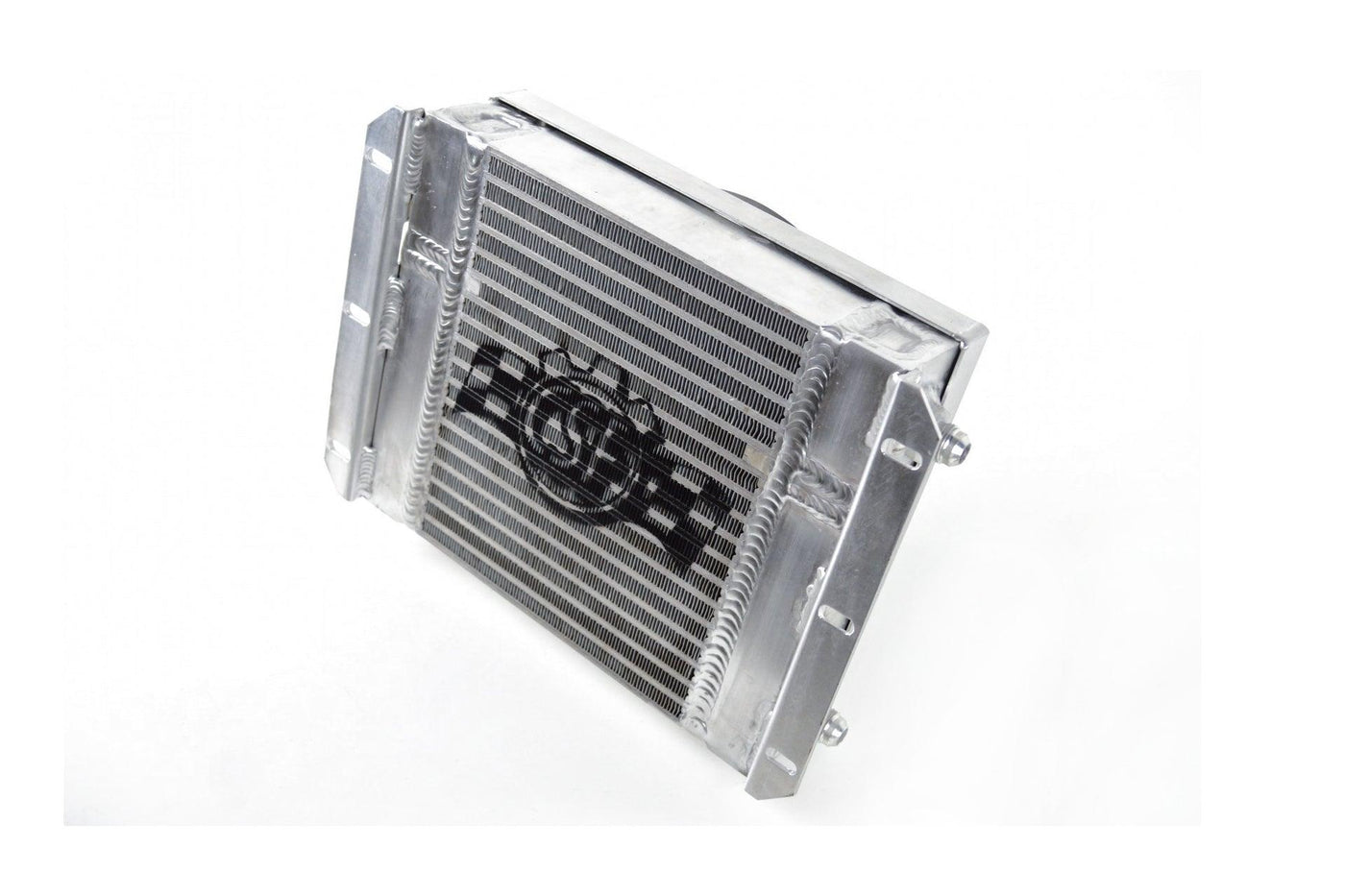

13.8in x 10in Dual Fluid Bar & Plate HD Oil Cooler w/9in SPAL Fan
The revolutionary dual-fluid oil cooler from CSF is the most versatile oil cooler on the market. Its universal-fit design makes it an ideal choice for all types of racing drifting as well as marine sand sports applications and everything in-between.The all-aluminum design was made to withstand even the most extreme conditions - With extruded aluminum end tanks TIG welds a heavy-duty bar and plate core and pressure testing up to 120psi. The core features 17 rows of cooling split into two sections of 5 and 12 rows allowing for cooling of two different fluids in one compact design. Virtually any type of oil can be used - including engine oil power steering fluid transmission oil and gearbox fluid. The oil cooler includes a SPAL fan and shroud with isolator mounts (for high vibration) - but this can be removed for a more compact fit or when not needed. -10 AN fittings are built into the end tanks making it easy to install for aftermarket and race applications.
9.7" Tall x 13.8" Wide (With Brackets) 14" x 5.15" Thick (With Fan) (5.65" Thick With Bracket Overhang);
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.; 17 Rows of Cooling Split-up Into 2 Sections of 5 Rows (30%) and 12 Rows (70%); Includes Removable 9" SPAL Fan & Shroud; Built-in AN -10 Male Fittings (Plug and Play); Pressure Tested at 120psi; Extruded Aluminum Endtanks; Heavy-Duty Bar and Plate Core Design; Can Be Used With Any Type of Oil (i.e. Engine Oil Power Steering Fluid Transmission Oil Gearbox Fluid)
